DATA SHEET (MARSEILLE)
DIMENSION 420 x 260mm
WEIGHT 3.5kg
MINIMUM ROOF PITCH 20° Degree
BATTEN SPACING 345+-3mm
COVERAGE 13.5pcs per m²
COLOUR - CLASSIC COLLECTION
GLAZED

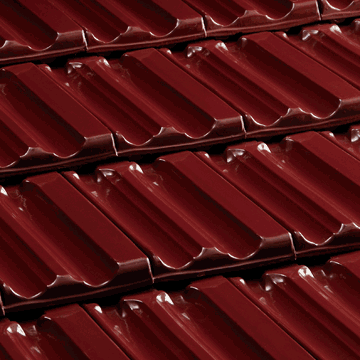

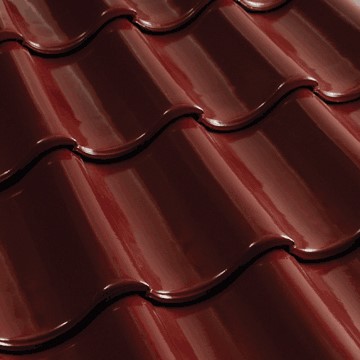

GLAZED MAROON

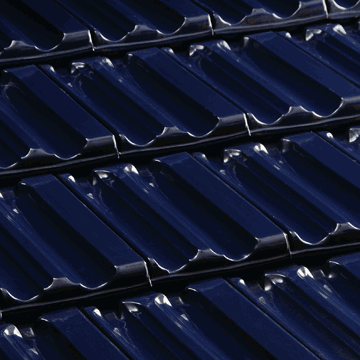

GLAZED OCEAN BLUE

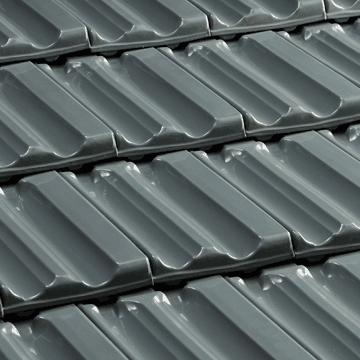

GLAZED GREY
GLAZED PEACH
GLAZED CORAL

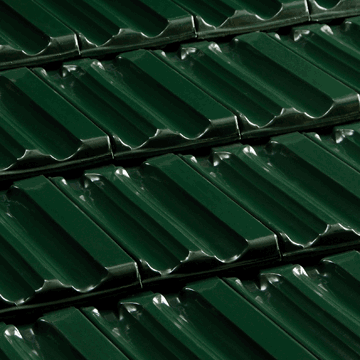

GLAZED DARK GREEN
GLAZED OLIVE GREEN

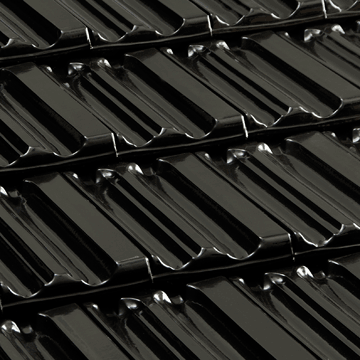

GLAZED BLACK

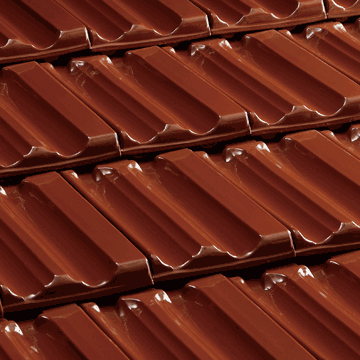

GLAZED BROWN
SATIN

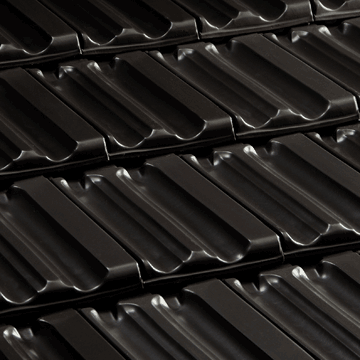

SATIN BLACK

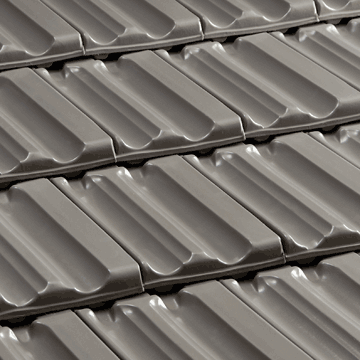

SATIN GREY

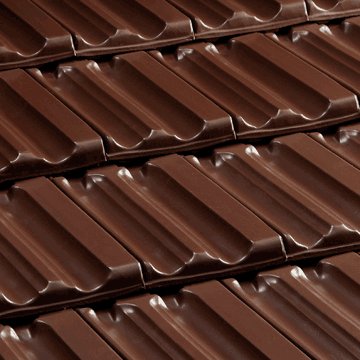

SATIN BROWN
SATIN MAROON
SATIN SLATE GREY

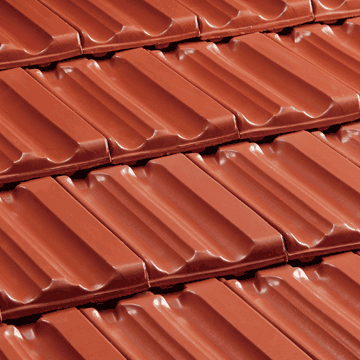

SATIN RED
COLOUR - MODERN COLLECTION
EARTHY

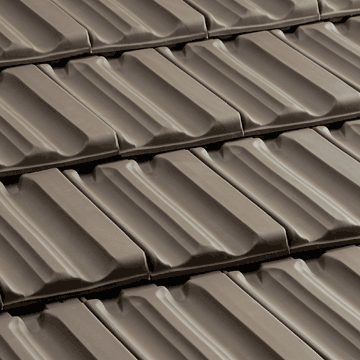

EARTHY BLACK

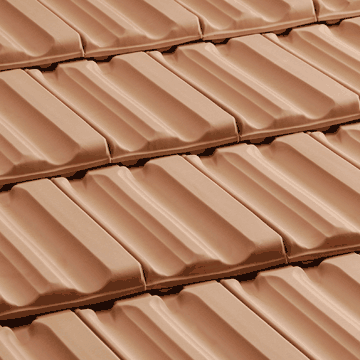

EARTHY BROWN

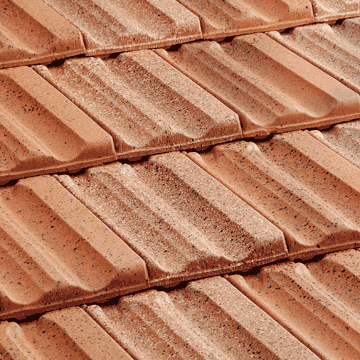

SPRING

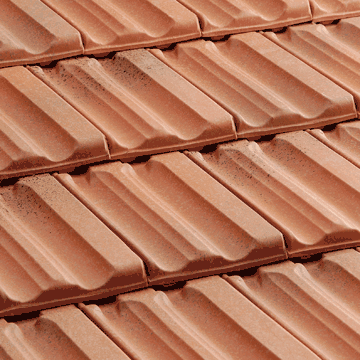

AUTUMN
UNGLAZED

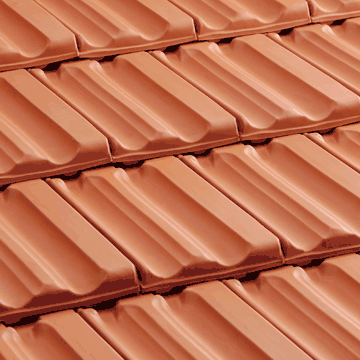

NATURAL RED

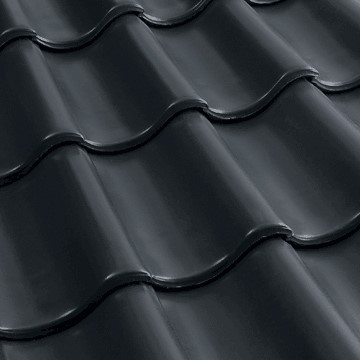

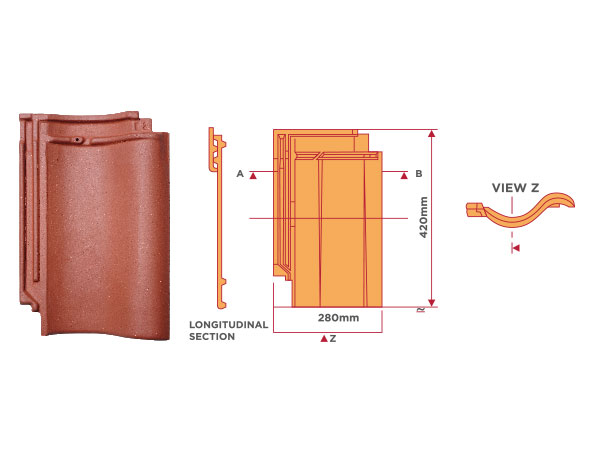

DATA SHEET (S-PANTILE)
DIMENSION 420 x 280mm
WEIGHT 3.5kg
MINIMUM ROOF PITCH 20° Degree
BATTEN SPACING 345+-3mm
COVERAGE 12.5pcs per m²
COLOUR - CLASSIC COLLECTION
GLAZED

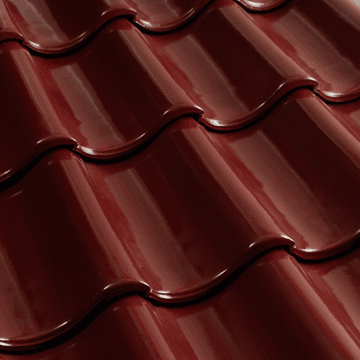

GLAZED MAROON
GLAZED OCEAN BLUE

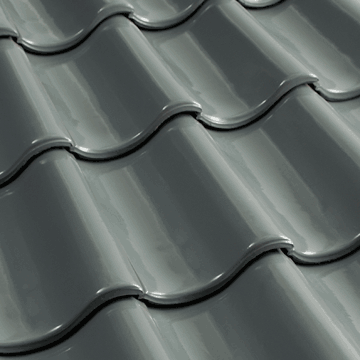

GLAZED GREY

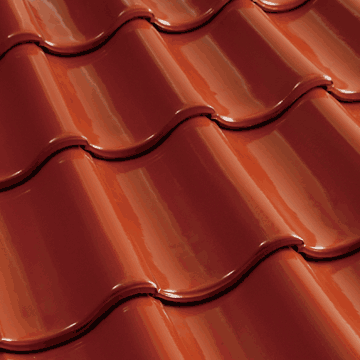

GLAZED PEACH

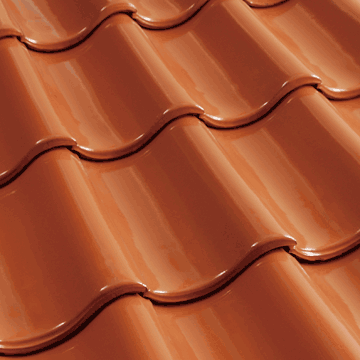

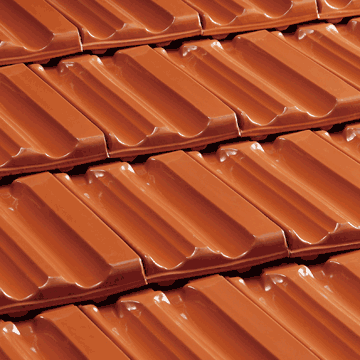

GLAZED CORAL

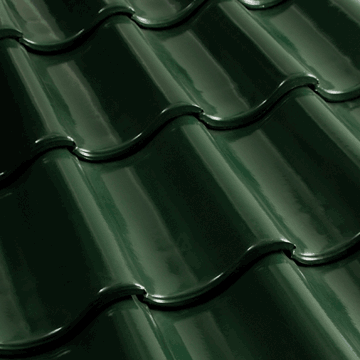

GLAZED DARK GREEN

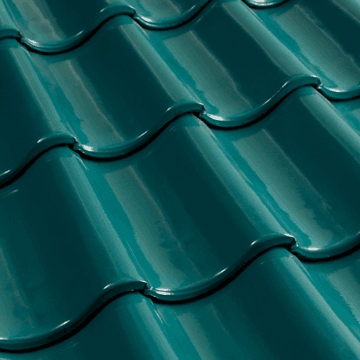

GLAZED OLIVE GREEN

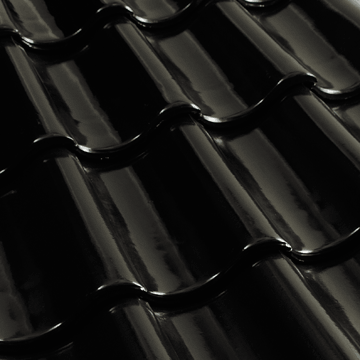

GLAZED BLACK

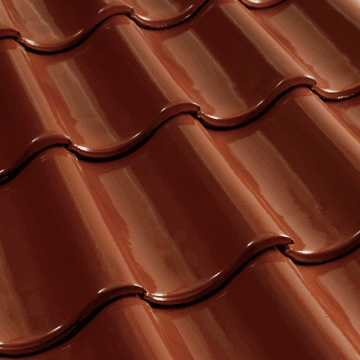

GLAZED BROWN
SATIN

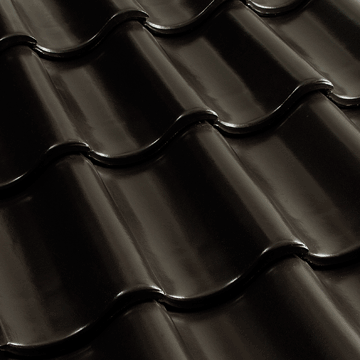

SATIN BLACK

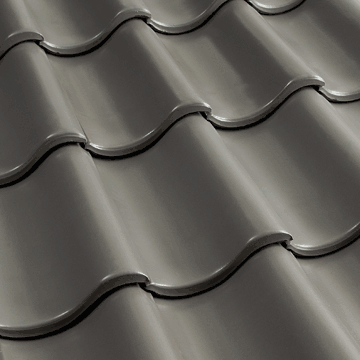

SATIN GREY
SATIN BROWN
SATIN MAROON
SATIN SLATE GREY

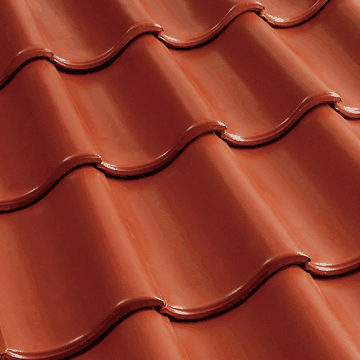

SATIN RED
COLOUR - MODERN COLLECTION
EARTHY

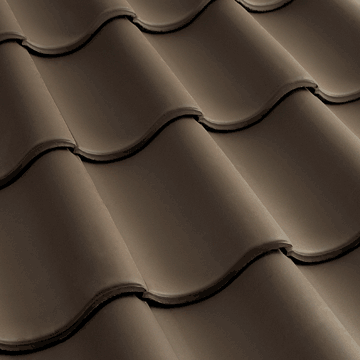

EARTHY BLACK

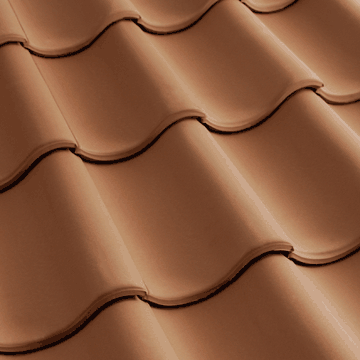

EARTHY BROWN

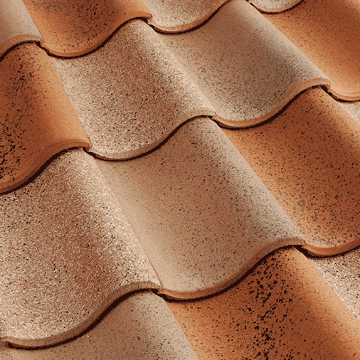

SPRING

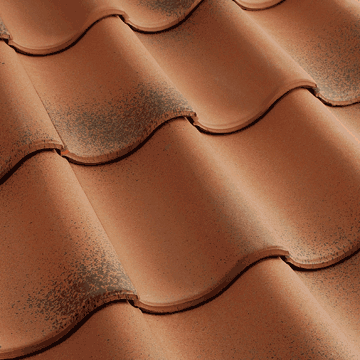

AUTUMN
UNGLAZED

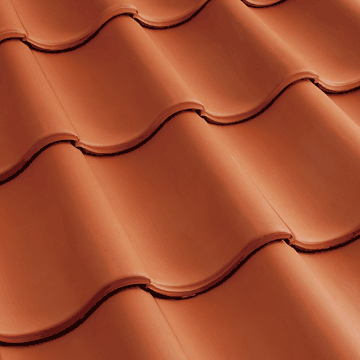

NATURAL RED

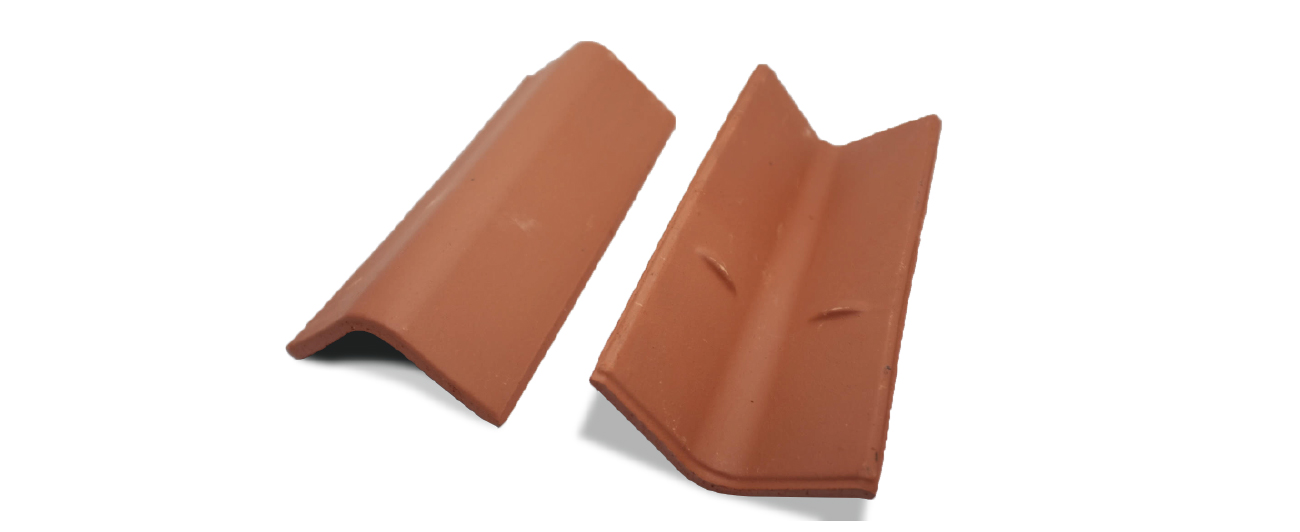

DATA SHEET (HERITAGE V)
DIMENSION (LARGE END) 135mm
DIMENSION (SMALL END) 125mm
LENGTH 270mm
WEIGHT 1.07kg
TILES PER M2 70pcs
WEIGHT PER PALLET 175kg
TILES PER PALLET 840pcs
WEIGHT PER PALLET 910kg
MINIMUM ROOF PITCH 20° Degree
OVERLAPPED LENGTH 100mm
EXPOSED LENGTH 170mm
