DATA SHEET (LEGACY)
LENGTH (L) 420mm
HORIZONTAL WIDTH (W) 330mm
BATTEN SPACING* 310-330mm
MINIMUM HEADLAP 90mm
COVERAGE 10.1pcs/m2 (based on 90mm headlap)
WEIGHT PER PIECE 5.0kg (approximately)
WEIGHT (PER m2) 50.5kg/m2 (approximately)
MINIMUM PITCH 20°**
COLOUR
TITANIUM BLACK
SILVERSTONE GREY
BRONZE BROWN
TERRACOTTA ORANGE
FERRA RED
DATA SHEET (PERSPECTIVE)
LENGTH (L) 420mm
HORIZONTAL WIDTH (W) 330mm
BATTEN SPACING* Up to 295mm | Up to 320mm | Up to 330mm | Up to 345mm
MINIMUM HEADLAP 125mm | 100mm | 90mm | 75mm
COVERAGE 11.3pcs/m2 | 10.4pcs/m2 | 10.1pcs/m2 | 9.7pcs/m2
WEIGHT PER PIECE 4.4kg (approximately)
WEIGHT (PER m2) 49.7kg/m2 | 45.8kg/m2 | 44.4kg/m2 | 42.7kg/m2
MINIMUM PITCH 15° | 17.5° | 20° | 25°
PERSPECTIVE MINERAL COLOUR
TITANIUM BLACK
SILVERSTONE GREY
BRONZE BROWN
TERRACOTTA ORANGE
FERRA RED
PERSPECTIVE G1
TITANIUM
SILVERSTONE
BRONZE

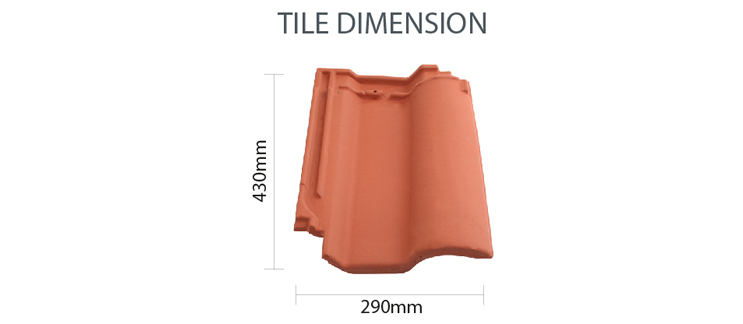

DATA SHEET (TOSCANA WARISAN)
LENGTH (L) 430mm
HORIZONTAL WIDTH (W) 290mm
EFFECTIVE WIDTH 235mm
WEIGHT 4 kg per pc (48 kg per m2)
BATTEN GAUGE 350mm (5mm)
MIN. HEADLAP 75mm – 85mm
COVERAGE 12 pcs / m2 (based on 75mm headlap)
MINIMUM PITCH 20°
COLOUR
DARK BROWN
CHARCOAL
NATURAL
GRAPHITE GREY
MAROON
DATA SHEET (TOSCANA WARISAN)
LENGTH (L) 420mm
HORIZONTAL WIDTH (W) 330mm
BATTEN SPACING* 320mm – 345mm
MIN. HEADLAP 75mm
COVERAGE 9.7pcs/m2 (based on 75mm headlap)
WEIGHT PER PEICE 4.5kg (+/- 0.1kg)
WEIGHT (PER m2) 43.7kg/m2 (approximately)
MINIMUM PITCH 17.5°
COLOUR
BLACK
CONTOUR MARSEILLE
BIRU ROYALE
ADVANCED PURE BROWN
ADVANCED DARK GREY
ADVANCED GREY
ADVANCED RED
ADVANCED ORANGE
DATA SHEET (ELABANA)
LENGTH (L) 420mm
HORIZONTAL WIDTH (W) 330mm
BATTEN SPACING* 320mm – 345mm
MIN. HEADLAP 75mm
COVERAGE 9.7pcs/m2 (based on 75mm headlap)
WEIGHT PER PEICE 4.2kg (+ 0.0kg, – 0.30kg)
WEIGHT (PER m2) 40.7kg/m2 (+0.0,-2.9kg/m2)
MINIMUM PITCH 17.5°
COLOUR
EBONY
RUSSET BROWN
ELABANA RED
SUNKISS ORANGE
GOLDEN CLAY
RUSSET GOLD
MAHOGANY
TERRA BROWN
SHADOW GRAY
ANTIQUE RED
IVORY HAZE
SANDSTONE BROWN
AVOCADO GREEN
ATLANTIC BLUE
MS GREY
